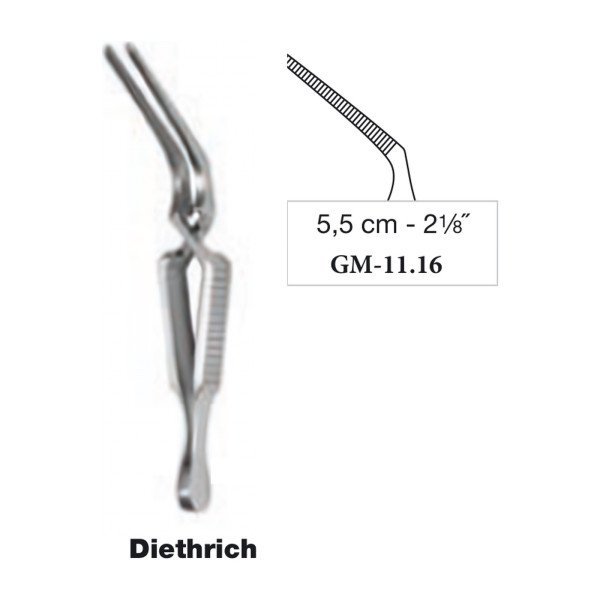

Diethrich Bulldog Clamp Curved 4.5 to 5.5 cm

The curved Diethrich bulldog clamp reaches a vessel at an angle and still closes flat along the jaw, in 4.5, 5 and 5.5 cm. It is the micro vascular clamp to use when the approach is oblique or a branch sits in the way, and the calibrated leaf spring occludes without crushing intima the way a locking bulldog clamp can. Pick your length from the dropdown. Bulk discounts apply on multi-piece and full-set orders.

Why Surgeons Choose It

Curved jaws come in at an angle and still meet along their full length
Calibrated leaf spring occludes without crushing the vessel wall
Fine atraumatic serrations grip without cutting intima
Three lengths cover the usual micro and small-vessel calibres
One-piece spring body, nothing to loosen or trap debris

Catalog Numbers

Length	Jaw	Catalog No.
4.5 cm - 1-3/4˝	Curved	GM-11.08
5 cm - 2˝	Curved	GM-11.12
5.5 cm - 2-1/8˝	Curved	GM-11.16

Related Vascular Clamps and Instruments

Built for Repeated Use

Formed and ground from AISI 420 martensitic stainless steel, spring-tempered so the closing force stays constant through years of use rather than fading. The curved jaws are matched in pairs so the serrations meet along their full length. The satin finish resists staining, and full autoclave cycles at 134 °C cause no loss of spring force.

Direct From the Manufacturer

We manufacture this instrument in our own Sialkot workshop and sell straight to surgeons, clinics, hospitals and distributors, so there is no importer margin in the price. Every clamp is closing-force tested and jaw-alignment checked before dispatch and carries a one-year warranty against manufacturing defects. Ask for bulk pricing on multi-piece and full-set orders, and for OEM laser marking on volume quantities.

Quick Specifications

Brand	Gulmaher Surgico
Product Type	Diethrich Bulldog Clamp, curved
SKU / Model	GM-11.08 / GM-11.12 / GM-11.16
Size / Configuration	4.5 cm - 1-3/4˝, 5 cm - 2˝ and 5.5 cm - 2-1/8˝; curved atraumatic jaws
Weight	0.05 kg
Applications	Cardiovascular, micro and reconstructive surgery; temporary small-vessel occlusion
Material	AISI 420 stainless steel
Grade	Surgical grade, spring-tempered
Finish	Satin
Packing	Single piece in protective sleeve; bulk packing on request
Sterility & Usability	Supplied non-sterile, autoclavable at 134 °C, reusable

Frequently Asked Questions

When do I need the curved jaw instead of straight?
When the vessel cannot be approached in line: an oblique exposure, a branch in the way, or a clamp that has to sit out of the anastomosis field. Straight jaws have their own page.

Which length should I choose?
4.5 cm for the smallest vessels and tight fields, 5 cm for routine micro work, 5.5 cm where a longer jaw gives a better bite. Most micro sets carry all three.

Will it damage the intima?
The spring is calibrated to occlude and no more, and the serrations are cut fine and atraumatic. Used within its intended vessel calibre it does not crush the wall.

Does the spring weaken after autoclaving?
No. The steel is spring-tempered, so full cycles at 134 °C do not change the closing force.

Do you supply straight and curved as a set?
Yes. Order from both pages and tell us it is a set order; bulk discounts apply on multi-piece and full-set quantities.

Is it supplied sterile?
No. It ships clean and non-sterile, ready for your own cleaning and autoclave cycle at 134 °C before first use.
